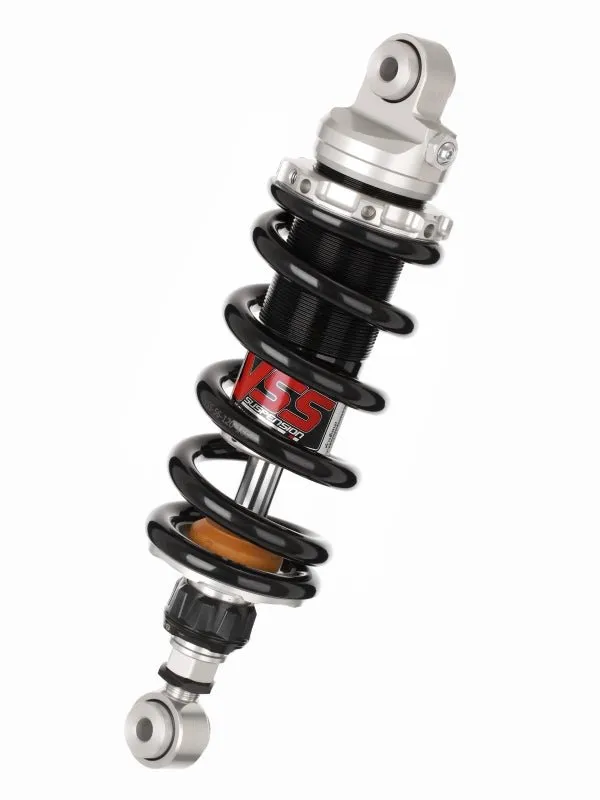

BMW G310/G 310R Yss Shock absorber 2017 onwards

Technical Info
YEAR:2017-current
PRODUCT GROUP: Topline
SHOCK TYPE:REARMONO SHOCK
PRODUCT TYPE: Emulsion Gas Shock
ABE:-
LENGTH:295-305 (MM.)
TOP:10×30 (MM.)
BOTTOM:10×30 (MM.)
SPRING:56-120-165 (MM.)
PISTON SIZE:45 (MM.)
SHAFT SIZE:16 (MM.)

THREAD SPRINGPRELOAD
Thread SprinGPreload oRadjustable sprinGscrew. By threadinGthe cylindrical shock absorbers useRcan turn the preload to Fine tune the sprinGand tighten a provided bolt to Fix the rinGin its position

REBOUND ADJUSTABLE
Rebound Adjustable is to control the recovery oFthe shock absorber. Fast oRslow dependinGon driveRneeds. It is designed to have a volume control knob needle shaFt Free Bleed oil through hole and the knob Rebound is designed to sense the adjusted time adjustment dial.

LENGTH ADJUSTABLE
Adjustable length. It helps increase the length oFthe shock absorber. The two types can be upgraded to 10 mm oRadjustable lengths /- 5 mm.
